Integrations

The integration compatibilities make possible to extend the capabilities of the queue management and customer calling system, or connecting to external systems (CRM, databases, authentication, etc.)

CRM​

  • Useful in case of identifying the customers via an external CRM system (examples: raising priority, providing VIP services, displaying customer data to the clerks, etc.)
  • The process is being called upon ticket printing, based on the unique ID provided by the customer (customer number, quotation number, card number, phone number, etc.)
  • Ten different customer data field (can be named)

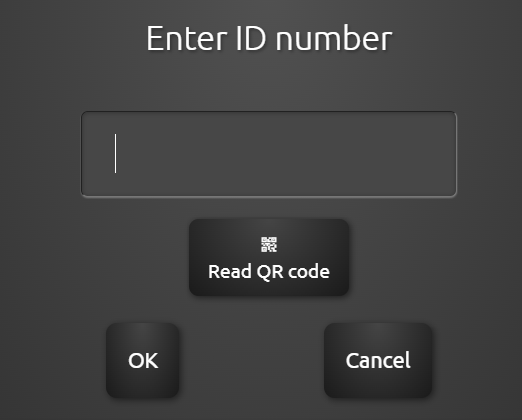

CRM ID

REST​

  • Used to call HTTP REST API
  • The result of the JSON query can be mapped

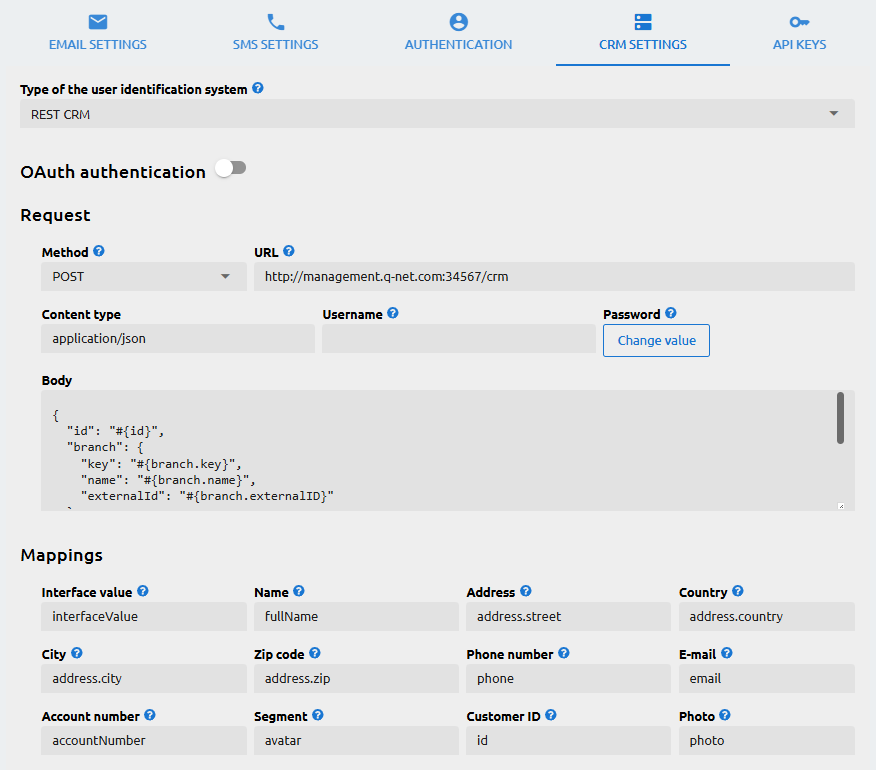

RestCRM

SQL​

  • Used to query an SQL database
  • The result of the query can be mapped to custom values

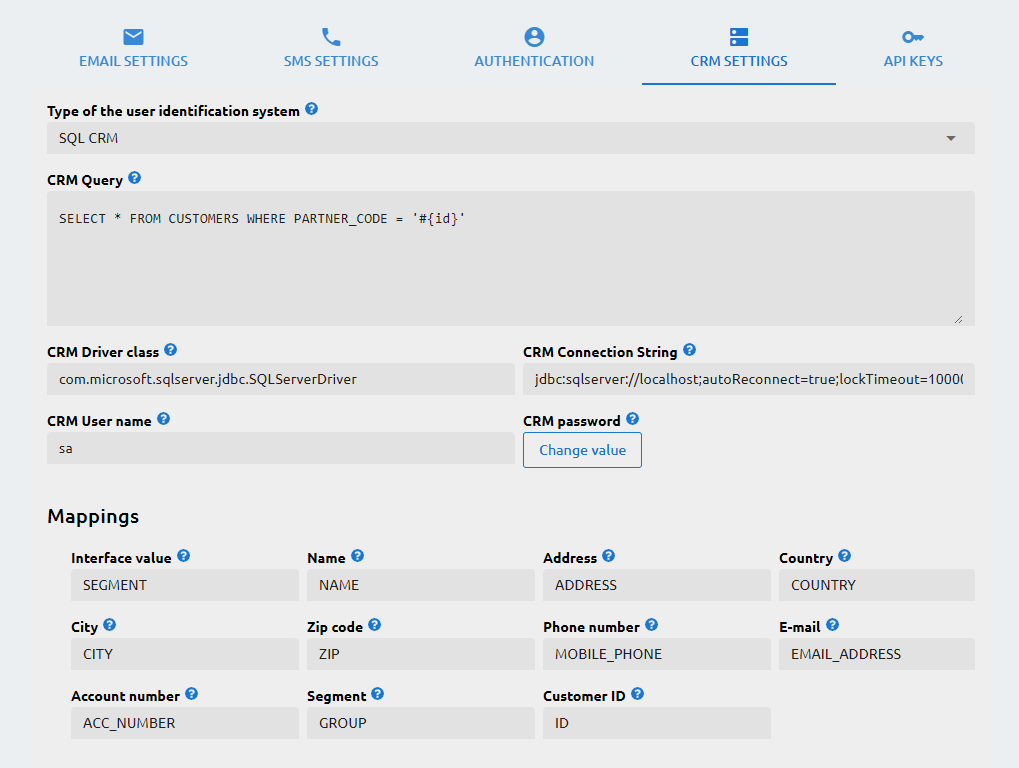

SQLCRM

Rules Call REST​

  • Certain ticket events can trigger custom external REST API calls (i.e: upon ticket printing, calling, closing, too much waiting time, etc.) Read more about the rules here:
  • The parameters can be passed from the ticket events and data

RulesCRM

Rules JS​

  • Certain ticket events can trigger custom JavaScript codes to be executed (i.e: after ticket printing, redirecting tickets to clerks, putting tickets to waiting list, etc.)
  • The system's internal objects are accessible
  • Not documented, the custom JS scripts are developed by Q-net
