Modules, licensing

The Q-net Pro v7 software package is composed of modules. To utilize the services of each module, the corresponding license must be purchased. The list of modules can be found at the end of this description. Technically, the license is implemented through a certificate. In the "License" menu, you will find two fields on the "Certificate" tab. The left one is a "Server certificate", automatically generated and includes the hardware parameters of the server. The content of this field should be sent to Q-net support team ([email protected]) to request a license certificate. Please also include the purchase invoice or proforma number and the name of the end-user company. Before doing that, make sure that the IP and hostname of the server will be the final one. As a reply we are going to send a "Permitting certificate".

You can either open the certificate file in a text editor and copy its content to the "Permitting certificate" field or use the "Import from file" button to browse the certificate file. Click on "Save" to apply the license.

License Certificate

This certificate includes the amount of peripherals and the validity date. Once the certificate validity ends you will have a 30 days period until the software becomes limited.

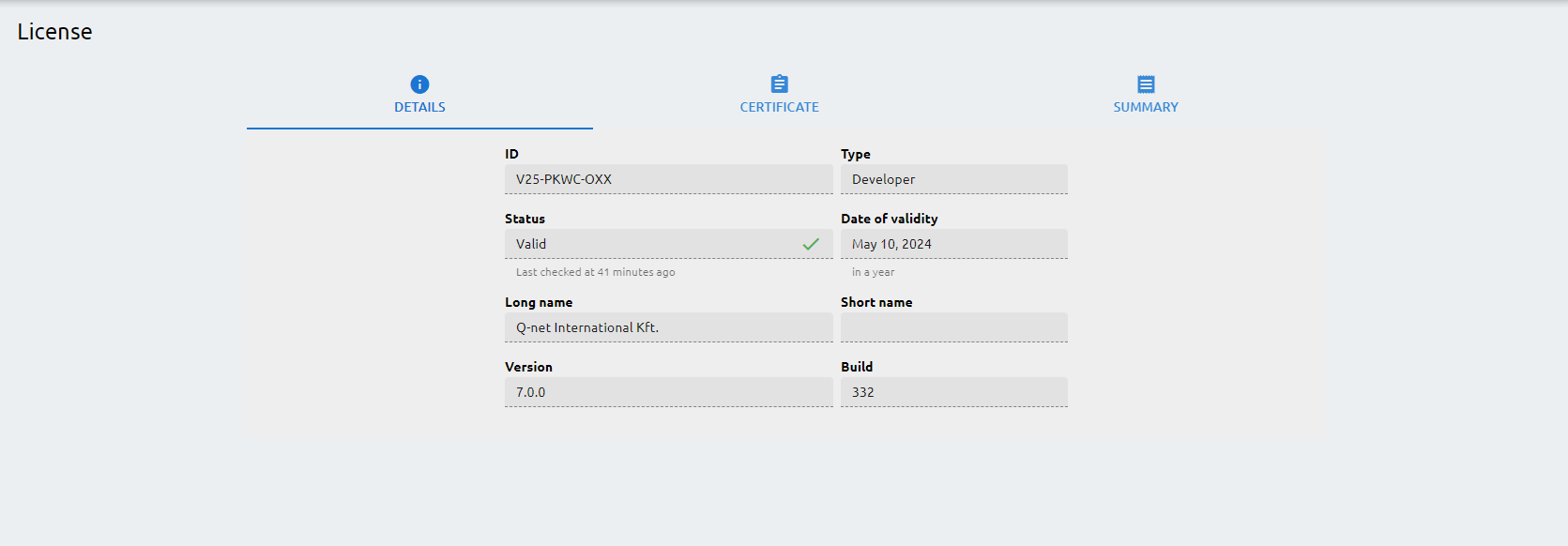

General information, such as ID, Validity, Type, Company name, version details, can be found on "Details" tab:

License Certificate

The included / available quantities of the modules can be overviewed on "Summary" page:

License Certificate

List of Q-net v7 modules:​

  • SH60 Q-net Pro monitoring module to SH70 with Head Office features
  • SH61 Q-net Pro mobile application for Appointment
  • SH62 Q-net Pro waiting area display module for 3rd party digital signage software
  • SH63 Q-net Pro ticket dispenser advanced editor module
  • SH65 Q-net Pro Waiting Area Visualization module
  • SH66 Q-net Pro Waiting Area Visualization Premium module
  • SH67 Voice recording software licence for Q-net Pro
  • SH68 Q-net Pro voice recording software licence
  • SH69 Q-net Pro Simplified Media Display module
  • SH70 Q-net Pro version 7 main software package
  • SH71 Q-net Pro statistics module to SH70 with Head Office features
  • SH72 Q-net Pro web-based appointment module to SH70 for branch network
  • SH73 Q-net Pro monitoring alert module
  • SH74 Q-net Pro ticket dispenser license
  • SH75 Q-net Pro customer feedback software module per branch to SH40 with head office features
  • SH76 Q-net Pro web-based media display software module
  • SH77 Q-net Pro customer feedback software license
  • SH78 Q-net Pro web-based calling unit
  • SH79 Q-net Pro LCD counter display software module
  • SH81 Q-net Pro customer message (SMS) module
  • SH82 Q-net Pro SmartTicket module for smartphone
  • SH83 Q-net Pro give-a-nick module, to enter a nickname to call
  • SH84 Q-net Pro CRM integration
